Chevrolet G506 Series 1 1/2 Ton 4x4 Trucks


G7163 Earth Auger Truck

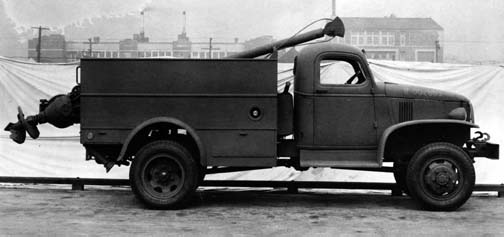

The Chevrolet 1 1/2 ton 4x4 Earth Auger Truck (G7163) was part of the G506 series of 1 1/2 ton closed cab trucks built by Chevrolet in large numbers during World War II. The 145 in. wheelbase G7163 had the mission of drilling holes for setting of power or telephone poles. It was used by the Signal Corps who referred to this truck as the K-44.

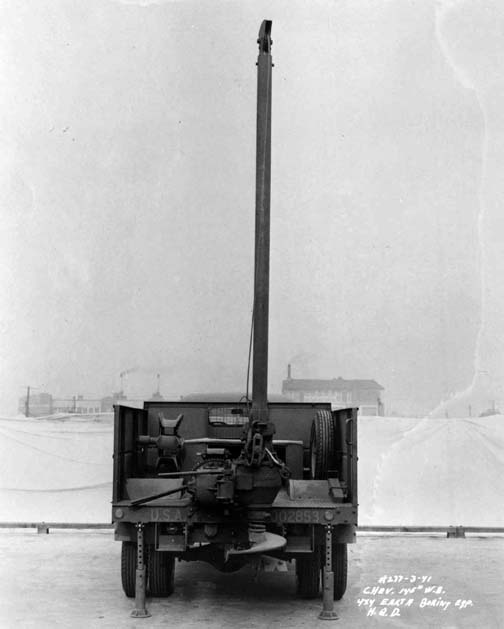

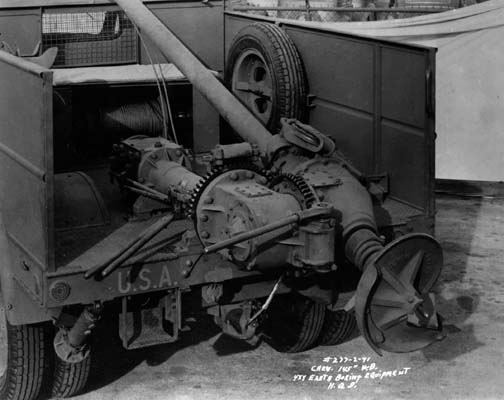

There were two body styles, the first with rectangular corners at the top rear of the side panels and the second with rounded corners at that position. The truck was equipped with a hole drilling auger, various sized bits, cable reel, and pole jack (to extract poles). A powerful bed-mounted winch could be used to lift and set the poles. The latter function was also performed by the related K42 and K43 trucks of this series which had a pole setting A-frame.
