VINTAGE MILITARY TRUCKS

M1101 & M1102 Cargo Trailers

for HMMWV , Humvee , Hummer Vehicles

USA



M1101 & M1102 Trailers For Sale

( Click on yellow title next to photo for info)

Out of Stock!





M1102 Trailers For Sold

( Click on yellow title next to photo for info)

No01 1998 M1102 Cargo Trailer  Sold !

No24 1998 M1102 Cargo Trailer  Sold !

No31 1998 M1102 Cargo Trailer  Sold !

No33 1998 M1102 Cargo Trailer  Sold !

No37 1998 M1102 Cargo Trailer  Sold !

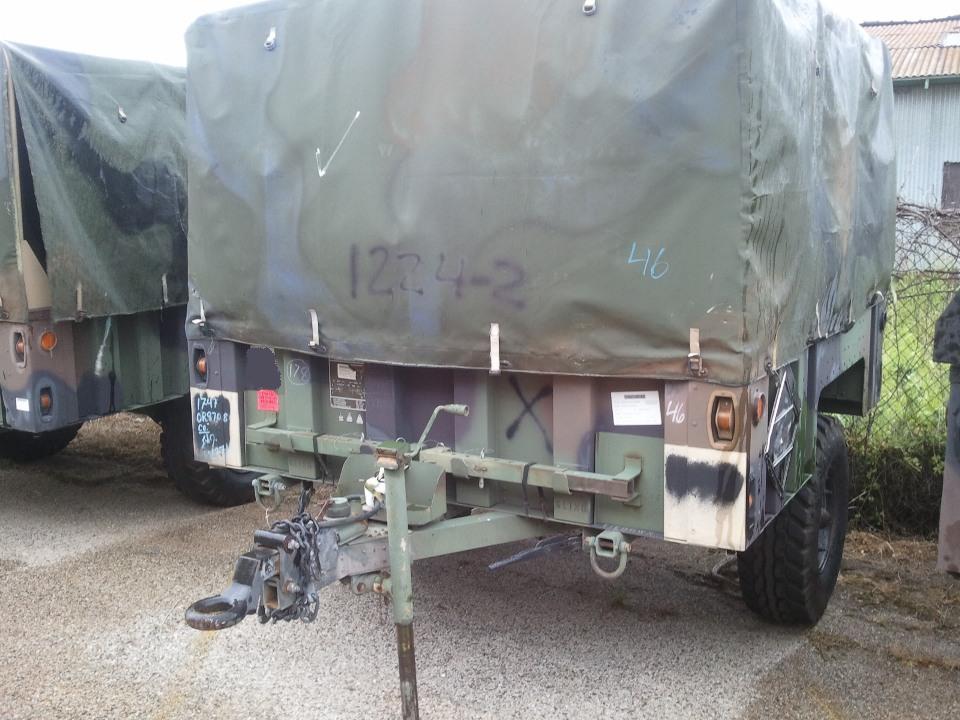

No41 1997 M1102 Cargo Trailer  Sold !

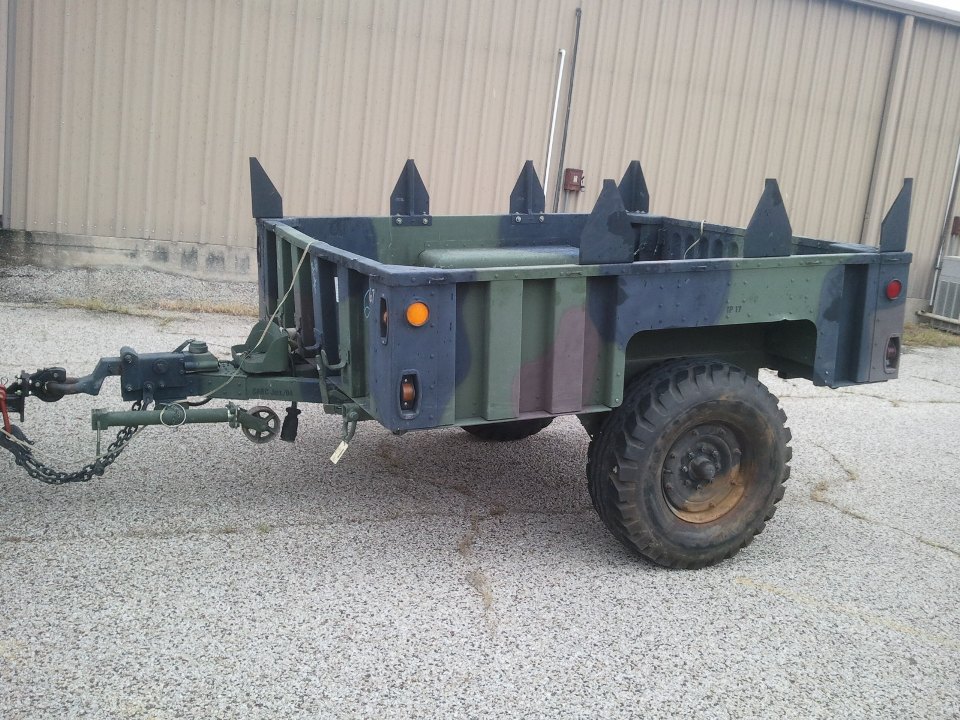

No47 1997 M1102 Cargo Trailer  Sold !

No48 1998 M1102 Cargo Trailer  Sold !

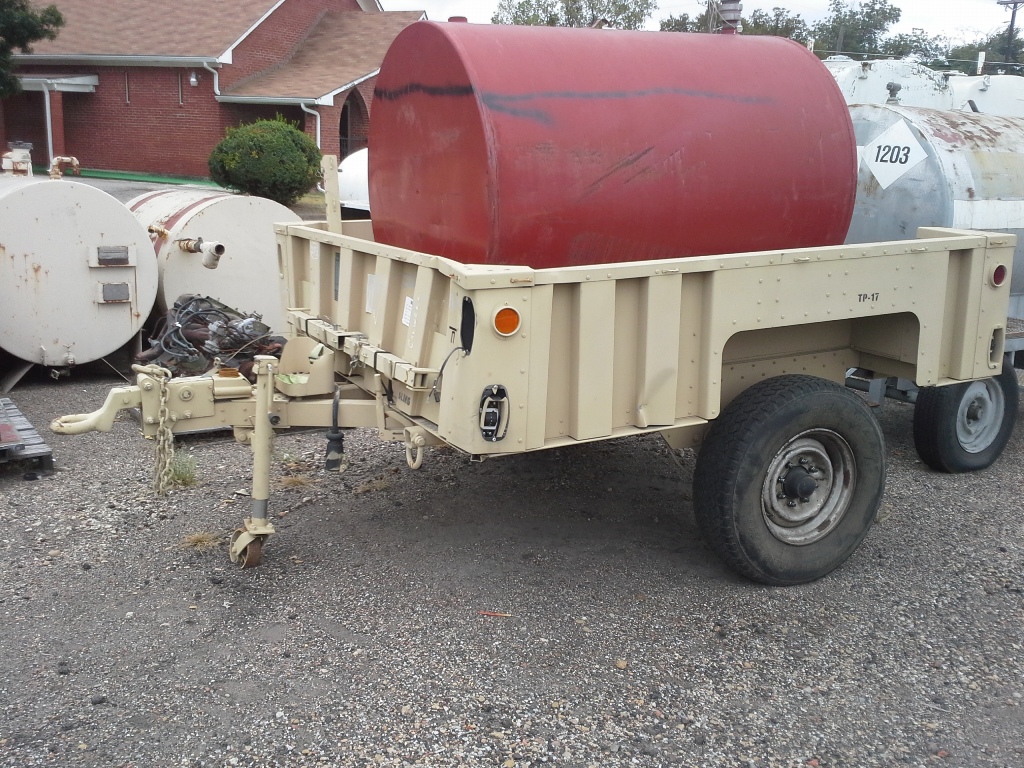

No52 2009 M1102 Cargo Trailer  Sold !

No56 1998 M1102 Cargo Trailer  Sold !

No58 1997 M1102 Cargo Trailer  Sold !

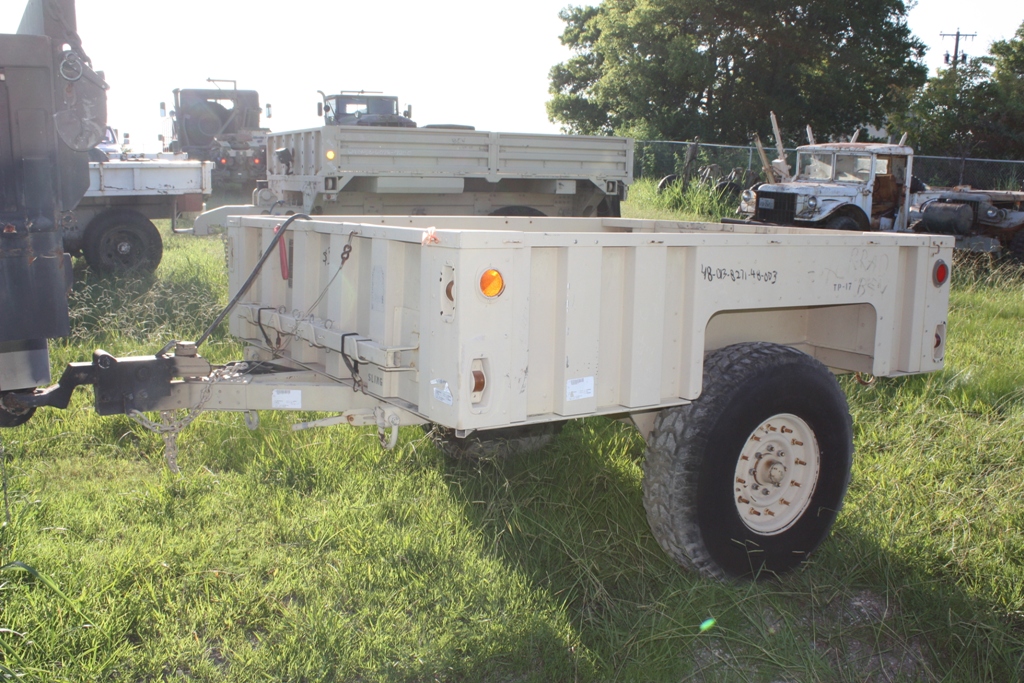

No60 1998 M1101 Cargo Trailer  Sold !

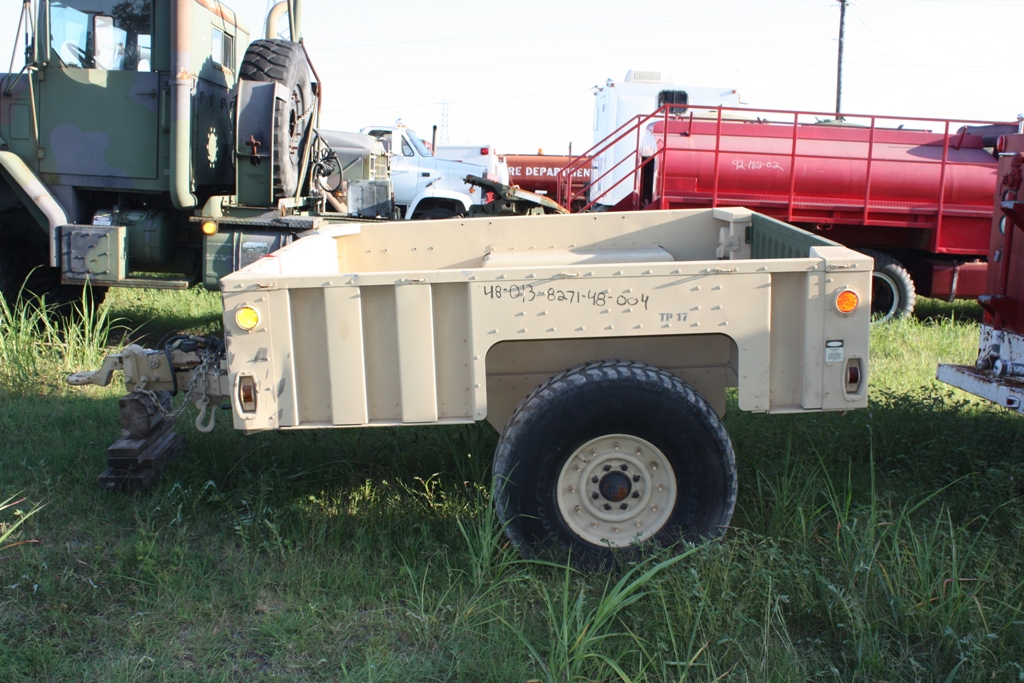

No61 2005 M1102 Cargo Trailer  Sold !





M1101 & M1102 Trailer Specifications:

General M1101 M1102
Maximum Vehicle Weight 3400 lb (1542 kg) 4200 lb (1905 kg)
Curb Weight 1460 lb ( 662 kg) 1460 lb ( 662 kg)
Maximum Payload Capacity 1940 lb (880 kg) 2740 lb (1243 kg)
Hull Unitized body construction using aircraft grade aluminum and chromoly steel
Dimensions
Overall Length 132 inches (335cm)
Overall Width 85.6 inches (217 cm)
Overall Height 52.5 inches (133 cm)
Track Width 72.5 inches (184 cm)
Drawbar Length (from axle center to eye center) 93.2 inches (237 cm)
Drawbar Eye Height 29.5 inches (75 cm)
Deck Height 34.5 inches (88 cm)
Ground Clearance (Laden) 16 inches (41 cm)
Running Gear
Suspension Type Fully independent progressive rate trailing arm suspension
Axle Tubular steel
Spring Media Progressive rate torselastic rubber chords
Shock Absorbers Telescopic, direct acting, one per wheel, HMMWV compatible
Wheels 16.5 X 8.25, two piece steel, HMMWV compatible, 8 on 6.5 inch bolt pattern
Tires 37X12.50R16.5 Goodyear Wrangler M/T, with 30-mile runflat inserts, HMMWV compatible
Brakes 12 inch x 2 inch free backing hydraulic surge brakes with automatic breakaway actuation. Independent lever-operated left and right side mechanical parking brakes.
Electrical System 24 Volt DC sealed lighting system with blackout convoy lights, 12 pin connector plug mates with HMMWV
Performance
Max Speed (Primary Roads) 55 mph (88 kph )
Max Speed (Secondary Roads) 35 mph (56 kph)
Max Speed (Off Road) 20 mph (32 kph)
Departure Angle 39 degrees
Turning Angle 80 degrees
Fording 60 inches (152 cm)

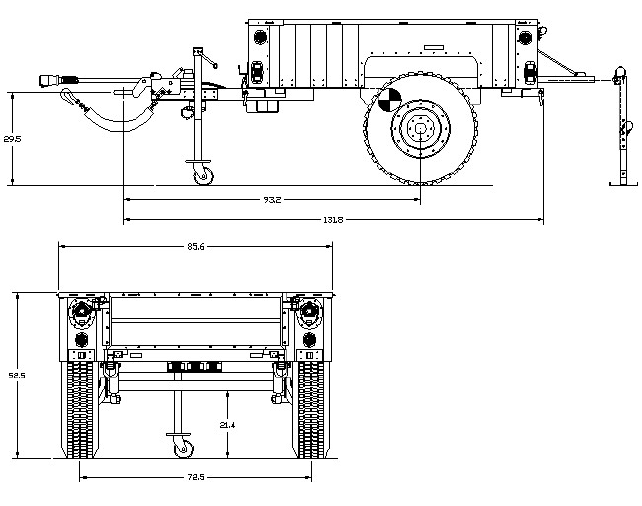

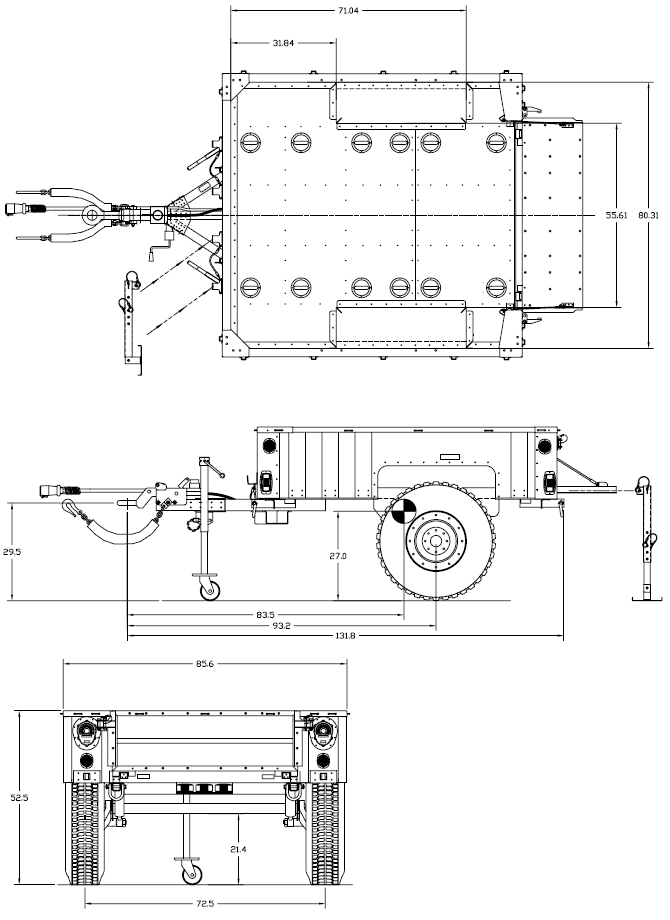

M1101 - M1102 Dimensions:
